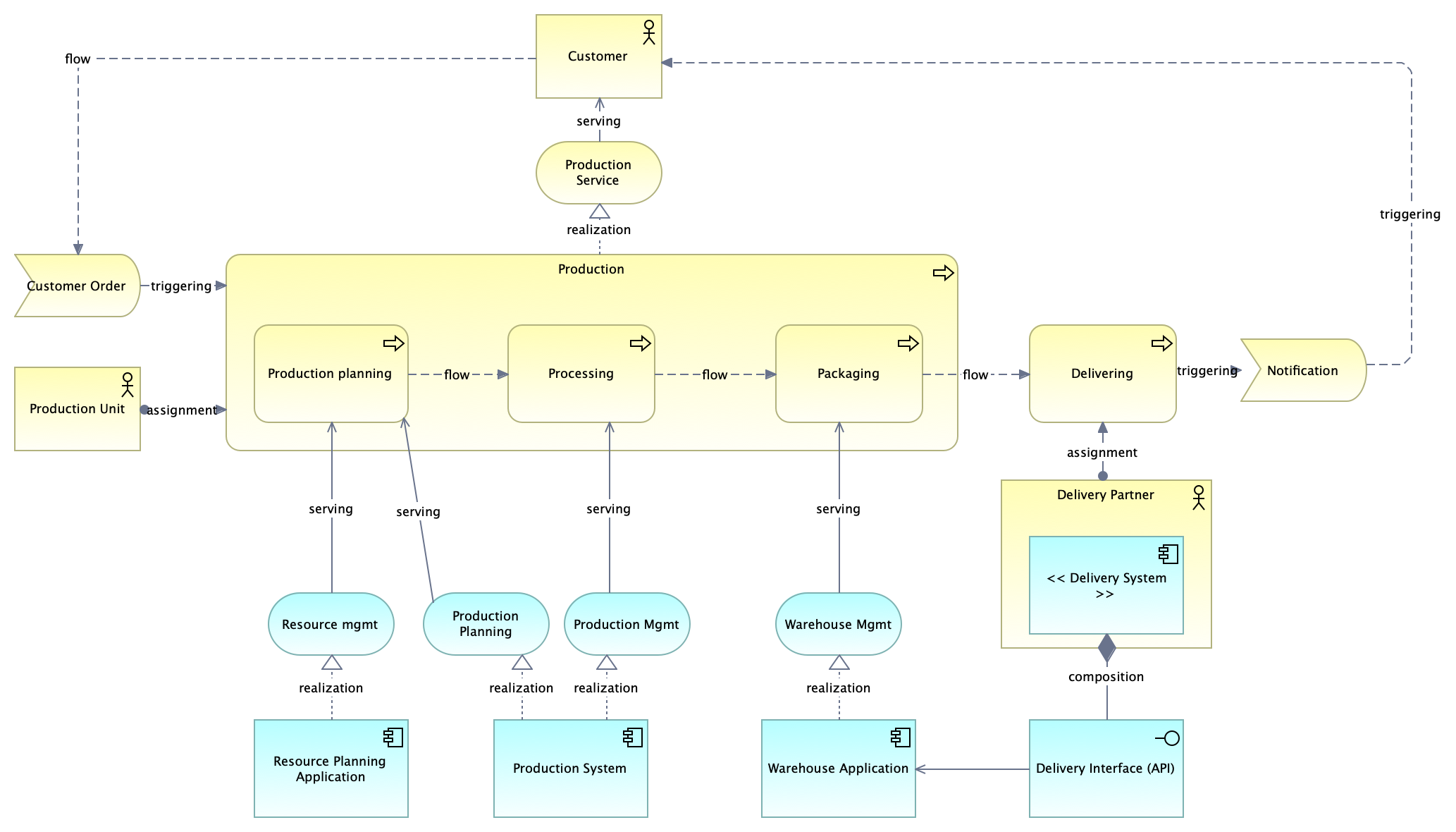

Production Unit - [Layered View]

Production Unit - [Layered View] ()

2021-07-26
EHo


Production
Production planning
Processing
Packaging
Resource Planning Application
Resource mgmt
Warehouse Application
Production Unit
Customer
Production Service
Delivering
Customer Order
Notification
Production System
Production Planning
Production Mgmt
Warehouse Mgmt
Delivery Partner
<< Delivery System >>
Delivery Interface (API)


realization	Production	Production Service
flow	Production planning	Processing
flow	Processing	Packaging
flow	Packaging	Delivering
realization	Resource Planning Application	Resource mgmt
serving	Resource mgmt	Production planning
realization	Warehouse Application	Warehouse Mgmt
assignment	Production Unit	Production
flow	Customer	Customer Order
serving	Production Service	Customer
triggering	Delivering	Notification
triggering	Customer Order	Production
triggering	Notification	Customer
realization	Production System	Production Planning
realization	Production System	Production Mgmt
serving	Production Planning	Production planning
serving	Production Mgmt	Processing
serving	Warehouse Mgmt	Packaging
assignment	Delivery Partner	Delivering
composition	<< Delivery System >>	Delivery Interface (API)
	Delivery Interface (API)	Warehouse Application
